Low Power Thermal Sensors, Model 30A-BB-18
Product Code:
31OPH7Z02692
Product Category:
Laser Meter
Brand:
Ophir

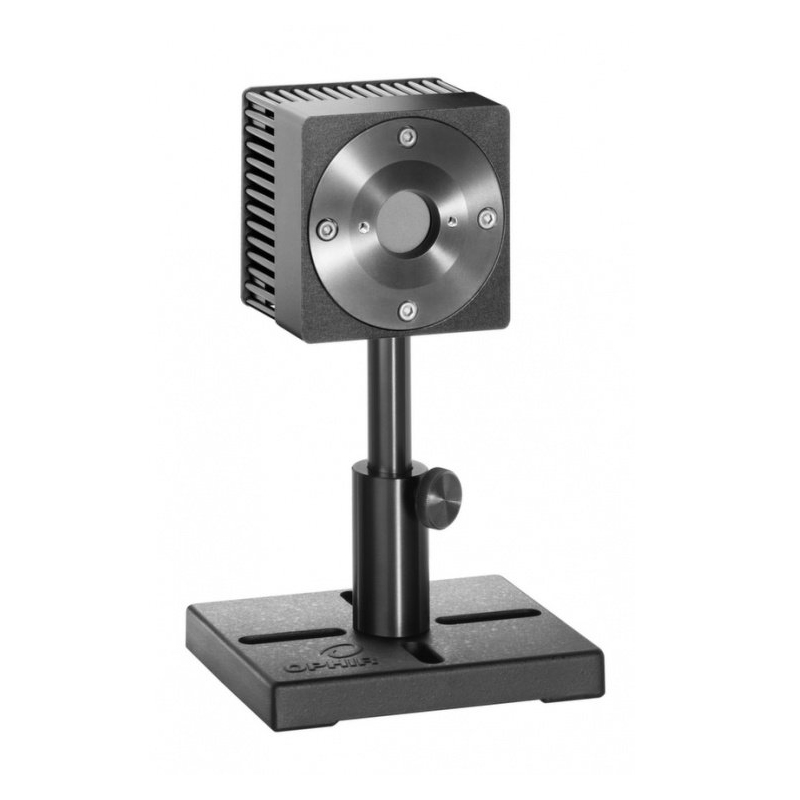

Low Power Thermal Sensors, Model 30A-BB-18
Laser power sensors and LEDs for industrial low average laser power Pulsed or continuous laser source and various beam sizes
– Absorber Type: Broadband
– Aperture : Ø17.5mm
– Spectral range : 0.19-20µm
– Power Range : 10mW-30W
– Energy Range : 6mJ-2J
– Size: 64 L x 64 W x 49 D (mm)
– Max Pulse Energy : 30J
– Maximum average energy density: 20kW/cm²
– Response Time : 0.8 s
– Max Energy Density (for <100ns) : 0.3J/cm²
– Max Energy Density (for 2ms) 2J/cm²
– Max Average Power : 30W
– Beam Track Functions : N.A.
– Compliance : CE, UKCA, China RoHS
