High Power Laser Beam Dumps & Low Power Beam Traps BD5000W-BB-50
Product Code:
31OPH7Z17201
Product Category:
Laser Meter
Brand:
Ophir

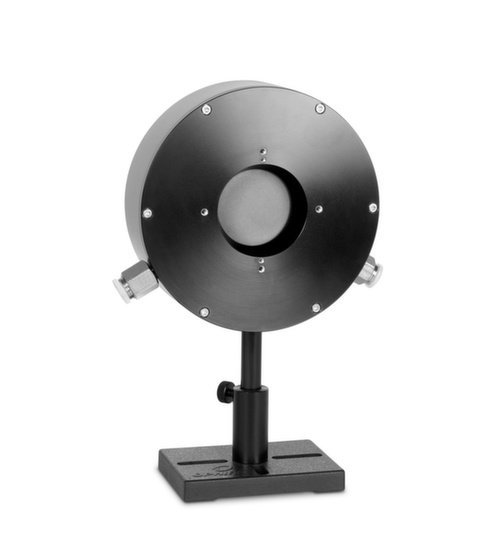

High Power Laser Beam Dumps & Low Power Beam Traps BD5000W-BB-50
BD5000W-BB-50 It is a water-cooled beam dumper with a 50 mm aperture.
Max 5000W can withstand 3kW/cm² at full power. and has a spectral range from 0.19 – 20µm
– Aperture : Ø50mm
– Spectral range : 0.19 – 20µm
– Power Range : Up to 5000W
– Size: Ø146 W x 47 D (mm)
– Maximum average energy density: 3kW/cm²
– Max Energy Density (for <100ns) : 0.3J/cm²
– Max Energy Density (for 2ms) : 10J/cm²
– Beam Track Functions : N.A.
– Compliance : CE, UKCA, China RoHS
