Low Power Thermal Sensors Model L30A-10MM
Product Code:
31OPH7Z02273
Product Category:
Laser Meter
Brand:
Ophir

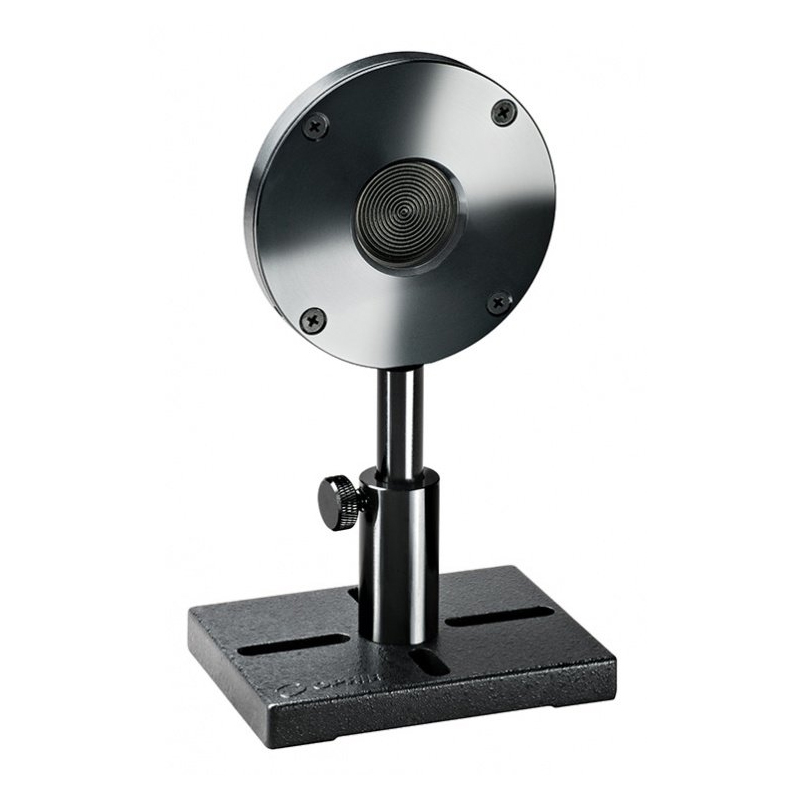

Low Power Thermal Sensors Model L30A-10MM
Laser power sensors and LEDs for industrial low average laser power Pulsed or continuous laser source and various beam sizes
– Absorber Type: Broadband
– Aperture : Ø26mm
– Spectral range : 0.15 – 20µm
– Power Range : 80mW-30W
– Energy Range : 20mJ-60J
– Size: Ø75 W x 10 D (mm)
– Max Pulse Energy : 60J
– Maximum average power density: 20kW/cm² at 30W, 28kW/cm² at 10W
– Response Time : 1.5 s
– Max Energy Density (for <100ns) : 0.3J/cm²
– Max Energy Density (for 2ms) : 10J/cm²
– Max Average Power : 30W
– Beam Track Functions : N.A.
– Compliance : CE, UKCA, China RoHS
