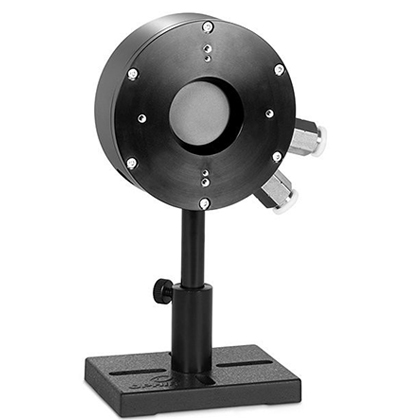

High Power Water Cooled Thermal Sensors model L1000W-BB-34
High Power Water Cooled Thermal Sensors model L1000W-BB-34
Water-cooled thermal energy/thermal energy sensor Equipped with a 34mm aperture, it can measure power from 5W to 1000W and energy from 300mJ to 300J. It has a wide-band spectral coating and covers a spectral range from 0.19 to 20µm. The sensor comes with a standard 1.5 meter cable for connection. with meter or PC interface
– Absorber Type : Broadband
– Aperture : Ø34 mm
– Spectral range : 0.19 – 20 µm
– Power Range : 5 W – 1000 W
– Energy Range : 400 mJ – 300 J
– Size: Ø 100 W x 35 D (mm)
– Max Pulse Energy : 300 J
– Maximum average power density : 7 kW / cm²
– Response Time : 2.5 s
– Maximum average energy density ( <100 ns ) : 0.3 J / cm²
– Maximum average energy density ( 2 ms ) : 10 J / cm²
– Max Average Power : 1000 W
– Compliance : CE, UKCA, China RoHS
