Low Power Thermal Sensors L30A-EX-10mm
Product Code:
31OPH7Z02686
Product Category:
Laser Meter
Brand:
Ophir

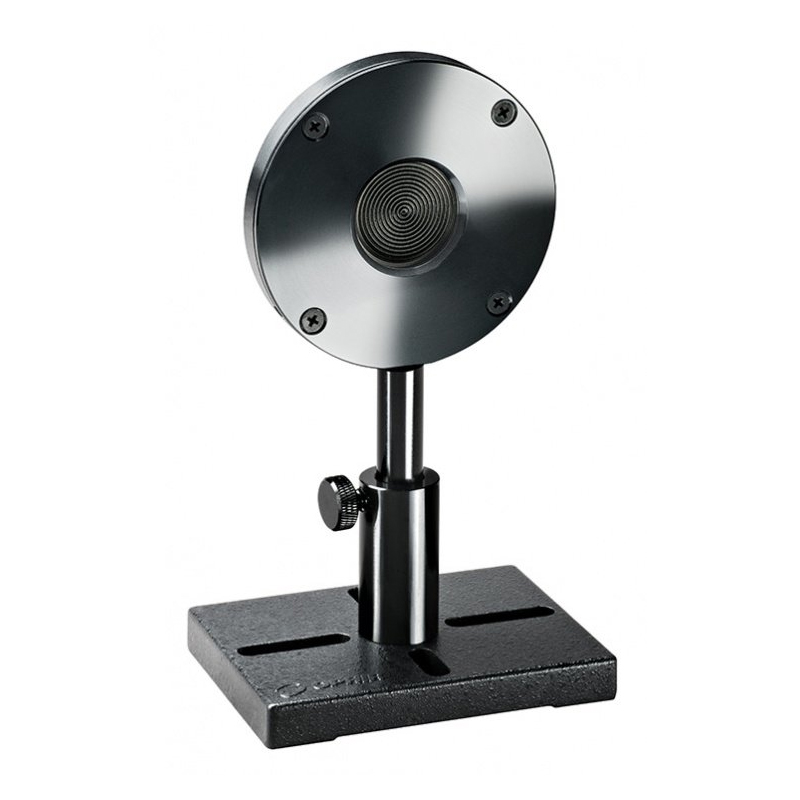

Low Power Thermal Sensors L30A-EX-10mm
Laser power sensors and LEDs for industrial low average laser power Pulsed or continuous laser source and various beam sizes
– Absorber Type: EX
– Aperture : Ø26mm
– Spectral range : 0.15 – 0.7µm, 10.6µm
– Power Range : 80mW-30W
– Energy Range : 20mJ-30J
– Size: Ø75 W x 10 D (mm)
– Max Pulse Energy : 30J
– Maximum average energy density: 1.5kW/cm²
– Response Time : 1.5 s
– Max Energy Density (for <100ns) : 0.5J/cm²
– Max Energy Density (for 2ms) : 12J/cm²
– Max Average Power : 30W
– Beam Track Functions : N.A.
– Compliance : CE, UKCA, China RoHS
